5G NR mmWave Outdoor Integrated Macro gNB

Features:



  • Portable, highly integrated, all-in-one, and leaving no trace.
  • 64 dual-polarized antenna elements, built-in with a maximum +/-60 degree tilt.
  • Outdoor 5G integrated mmWave gNB.
  • The maximum rate is 400 Mbps for UL and 4.8 Gbps for DL.
  • Intelligent factory coverage for stadiums.

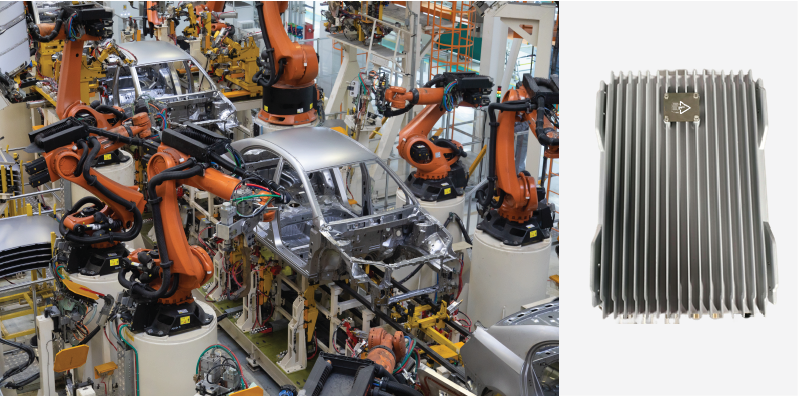

Stream SwiftWave64
Model Stream SwiftWave64
Frequency n256/n257/n258
Bandwidth 400MHz
TX power EIRP: ≥54dBm
Antenna 64 dual-polarized antenna elements, built-in with max +/-60 degrees
Interface 1 optical (10G SFP+) and 1 RJ-45 Ethernet  (1 GE)
Cell capacity 400 users
Throughput DL 4.8Gbps and UL 400 Mbps
Volume 10L
Weight < 6 kg
Power supply DC - 48V  (DC -40V~-57V)
Power consumption Maximum 120W
