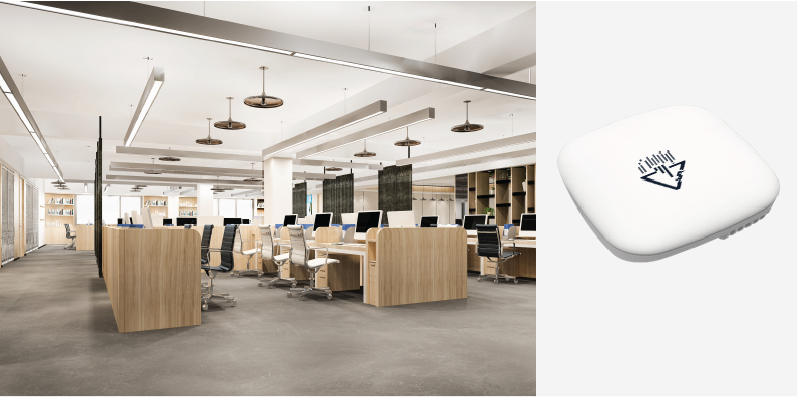

Model | Stream IntegraSync 128 |
Standard | 5G SA, TDD/FDD, 3GPP R15 |
Frequency | N41, N77, N78 , and customized frequency |
Bandwidth | 20MHz/40MHz/60MHz/80MHz/100MHz |
Cell capacity | 128 connected users, and 64 active users |
Synchronization | Network Listening, GPS/BD, 1588v2 |
Antenna | Interanl omni antenna |
TX Power | 4*250mW |
Throughput | 4T4R, 256QAM, 100MHz BW, TDD7D2U, DL 1700Mbps, UL 250Mbps5D3U, DL 1500Mbps, UL 375Mbps |
Backhaul | 1 optical (10G SFP+) + 1 RJ-45 Ethernet interface (10 GE) |
Power supply | PoE+ IEEE 802.3at standard, DC 12V |
Power consumption | Typical 35W, maximum 40W |
Dimension | 210x 210 x 60mm |
Weight | 2Kg |
